Limiting inrush current MF72 series 18D-15 ntc thermistor for
switch mode power supply
Features of 18D-15 ntc thermistor:
1. Small dimension, powerful, strong in inrush current limiting.
2. Large material constant, lower residue resistance.
3. Replacement, good consistency
4. Long life, high reliability.

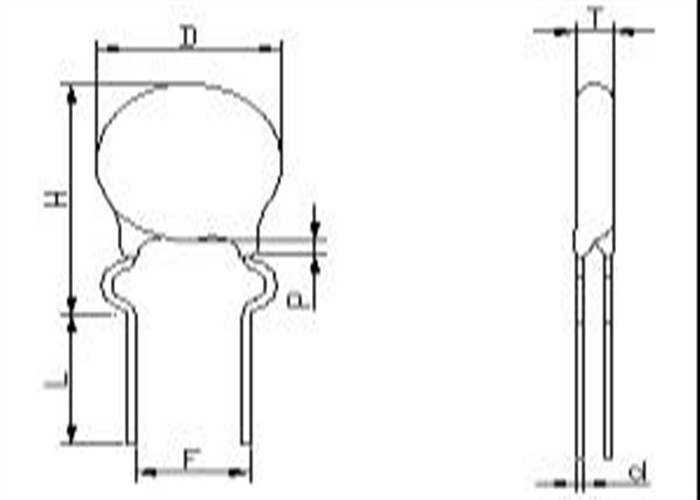

Dimensions of 18D-15 ntc thermistor:
D | F | L | H | P | D | T |
| 17 | 7.5±1.0 | 4±1.0 | MAX22 | Max4.0 | 0.75±0.05 | Max6.0 |
Parameters of 18D-15 NTC thermistor:
| Zero Power Resistance @ 25℃ | 18Ω±20% |
| B Value-25/85 | 3000±10% |
| Operating Temperature | -40- +170 |
| Thermal Dissipation Constant | 17 |
| Max Steady State Current | 2.8A |
| Max. Shock Capacitance(µF) | 300 |
Application of 18D-15 ntc thermistor:
1. Switch mode power supply
2. UPS power
3. Conversion power
4. Electronic energy saving lamps
Reduced current curve of 18D-15 ntc thermistor:
Maximum rated current
Note: Tl=The lowest temperature(℃)
Tt=The highest temperature(℃)
Company Introduction:
1. 15 years experience on PTC/NTC thermistor field
2. Competitive price
3. RoHS &UL compatible
4. Inquiry answered in 24hrs
5. On time handle over
6. OEM & ODM business accepted
7. Main target market:Europe, North America, Asia
8. Good team waiting here to serve for you
How to Order:
1. Application of the NTC thermistor : _______
2. Working environment of the NTC thermistor :______
3. The range of operating temperature:___℃to ____℃
*4. Dimension of the NTC thermistor: _______
*5. R(25) Value :_____
*6. I max :______
* Fill “*” items necessarily
RFQ:
| Question | Answers |
| 1 | What is the MOQ? | 5000pcs. |
| 2 | What is the payment terms? | Negotiation. |
| 3 | Can you accept special requirement? | Yes,we can.We can design for your special requirement. |
| 4 | Can you make the printing artworks(such as user
manual/packing/rating label) in our language | Yes,we can.We do OEM for a long time |
| 5 | Can we order samples: | Yes ,you can . Free samples are available |
