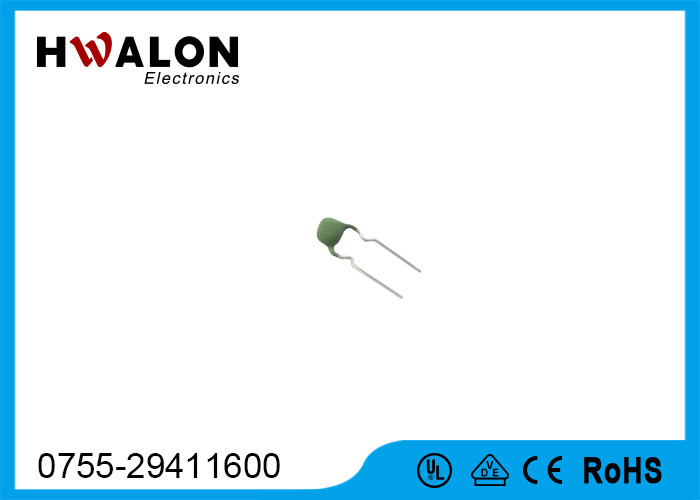

Inrush Current Limiter Resistor PTC Ceramic Thermistor RoHS CQC
Certification
Description:
1. Surges due to lighting strikes on or near to the line plant.
2. Short-term induction of alternating voltage from adjacent power
lines or railway systems, usually when these lines or systems occur
fault.
3. Direct contact between telephone lines and power lines.
Applications:
Switching power supply
air-conditioner and other household appliances
microwave oven
adapter
LED control panel
industry-controlling exchangers
program exchanger
security unit
telephone
overcurrent protection of terminals
| No. | Part no. | Vmax (v) | non-trip current (mA) @25 ℃ | non-trip current (mA) @60 ℃ | trip current (mA) @25℃ | resistance( Ω ) ±25% | Imax (A) | switch temp. | D(max) | T(max) | d |
| 1 | H2PR151RH03LB265 | 265 | 22 | 15 | 45 | 150 | 0.2 | 80 ℃ ±7℃ | 4.5 | 5.0 | 0.5 |
| 2 | H2PR101RH03LB250 | 250 | 25 | 18 | 55 | 100 | 0.2 | 80 ℃±7 ℃ | 4.5 | 5.0 | 0.5 |
| 3 | H2PR70RH05LB250 | 250 | 50 | 30 | 100 | 70 | 0.3 | 80 ℃±7 ℃ | 6.5 | 5.0 | 0.5 |
| 4 | H2PR121RH05LB265 | 265 | 30 | 20 | 60 | 120 | 0.3 | 80 ℃±7 ℃ | 6.5 | 5.0 | 0.5 |
| 5 | H2PR101RH07LB265 | 265 | 50 | 30 | 100 | 100 | 0.6 | 80 ℃±7 ℃ | 8.0 | 5.0 | 0.6 |
| 6 | H2PR12RH08LB250 | 265 | 120 | 70 | 220 | 12 | 0.8 | 80 ℃±7 ℃ | 9.0 | 5.0 | 0.6 |
| 7 | H2PR25RH08LB265 | 265 | 85 | 50 | 170 | 25 | 0.8 | 80 ℃±7 ℃ | 9.0 | 5.0 | 0.6 |
| 8 | H2PR35RH08LB265 | 265 | 80 | 50 | 150 | 35 | 0.8 | 80 ℃±7 ℃ | 9.0 | 5.0 | 0.6 |
| 9 | H2PR50Rh08LB265 | 265 | 60 | 40 | 120 | 50 | 1.0 | 80 ℃±7 ℃ | 9.0 | 5.0 | 0.6 |
| 10 | H2PR70RH03HE250 | 250 | 45 | 35 | 90 | 70 | 0.1 | 100 ℃±7 ℃ | 4.5 | 5.0 | 0.5 |
| 11 | H2PR101RH03HE250 | 250 | 40 | 30 | 80 | 100 | 0.2 | 100 ℃±7 ℃ | 4.5 | 5.0 | 0.5 |
| ... | ... | | | | | | | | | | |
Competitive Advantage:
1. PTC thermistor for overcurrent and overload protection is a million-time device of automatic protection, recoverability, using repeatedly, and no trigger, noice or sparks.
2. When PTC is in the normal state, the resistance is too low to
affect the regular work of the protected circuit such as the
voltage transformer's primary and secondary loops.
3. When the circuit is in disorder, the PTC will generate heat
suddenly, and the resistance value will go up to the high state,
which make the circuit in the state of relatively "reaking up" to
protect the circuit.
Specifications:
Hot Sale Inrush Current Limiter Thermistor PTC Thermistor High
Quality & Stability
