Black High Power Inrush Current Limited Thermistor 5D20 10D11 for
Transformer
Quick Detail:
1. ROHS compliant
2. Body size : diameter is from 5 to 30mm
3. Radial lead resin coated
4. Small size high power rating
5. Wide resistance range
6. Characteristics Fast response to the rapidly surge
7. Big material constant (B value), small remain resistance
8. ~55℃~+200℃ operating temperature range
Description:
When you turn an electrical equipment, the surge current can be
restrained by a power NTC Thermistor connected in series with the
power circuit. Because of the continuing action of current,
temperature of power NTC Thermistor raising,the resistance will
rapidly drop to a small value, so the consumed power can be
ignored. Therefore, using power NTC Thermistor is a most
effectively and most brief measure to restrain surge current,
protecting electrical equipment from destruction.

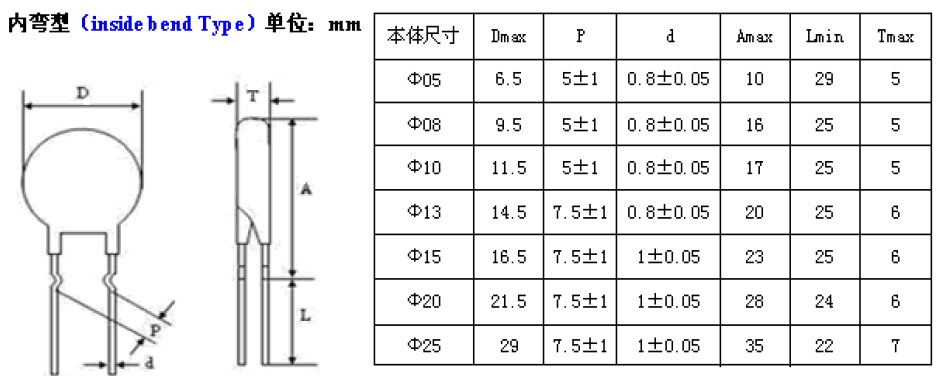

Dimension:
![CRN{}9~ZEN5X])ZNEECV81K.png](https://img.himfr.com/nimg/5b/12/54ae61e45a53c9d60c3c57bdcbb2.jpg)
| P/N | R25(Ω) | R tolerance | Imax(A) | IB(A) | RS(Ω) | δ(Mw/℃) | τ(Sec) |
| 5D-5 | 5 | ±20% | 1 | 2 | 0.353 | 6 | 20 |
| 10D-5 | 10 | ±20% | 0.7 | 1.4 | 0.771 | 6 | 20 |
| 15D-5 | 15 | ±20% | 0.6 | 1.2 | 0.9 | 6 | 20 |
| 22D-5 | 22 | ±20% | 0.6 | 1.2 | 0.9 | 6 | 20 |
| 33D-5 | 33 | ±20% | 0.5 | 1 | 1.2 | 6 | 20 |
| 47D-5 | 47 | ±20% | 0.4 | 0.8 | 1.5 | 6 | 20 |
| 68D-5 | 58 | ±20% | 0.4 | 0.8 | 2.1 | 6 | 20 |
| 200D-5 | 200 | ±20% | 0.1 | 0.2 | 6.259 | 6 | 20 |
Application:
1. Switching power supply
2. Electric motor
3. Transformer
4. Adapter
5. Halogen lamp
6. All kinds of CRT, display
How to order:
Please tell us parameters in the following to get exect products
1. Application of the NTC Thermistor
2. Diameter of the NTC Thernmistor
3. Resistance value and tolerance
4. B value and tolerance
* Fill " * " items necessarily
FAQ:
| Questions | Answers |
| What is the MOQ? | 5000pcs |
| What is the payment terms? | By negotiation |
| Can you accept special requirement? | Yes, we can.we can design for your special requirement. |
| Can you make the printing artworks(such as user
manual/packing/rating label) in our language? | Yes we can.we do OEM work for a long time. |
| Can we order samples? | Yes, you can.and free samples are available. |
Our Advantages:
1. We offer excellent quatity, the best service, favourable price
and prompt delivery for our every customer.
2. We have after-sales services to help our customers during using
the products.
3. We can customize the product according to relative requirements
of our customers.
4. Both OED and ODM are welcomed.
5. Your related to inquiry about our product will be replied in 12
hours.
6. Shipping by us( DHL, NTN, FedEx, EMS, UPS and by Sea), or by
your agent.
7. Payment by T/T, Western Union and Paypal.
8. Delivery within 3-5 days to sample order, 7-10days to bulk
order.
