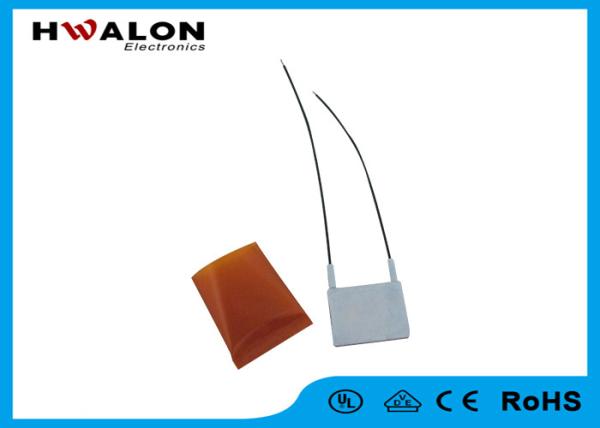

Factory price ceramic ptc heating element for mosquito dispeller
Yogurt machine
Description:
With the characteristic of constant temperature, the PTC heater
does not need the temperature-controlling system.-.If the PTC
heater is used to heat the cold wind, it will not be destroyed when
the wind is stopped.-.If the PTC heater is used to heat the liquid
(eg: water), it will not be destroyed when the liquid is burnt to
be dry.
PTC heating elements:
•Curie Temperature: 50~280 °C
•Resistance Range: 0.4~5.0K ohm
•Dimension: 5x 4mm~ 35x20 mm
•Types: Circle , rectangle , ring
•Rated Voltage: 6V~48V 100~120V 200~240V
Specifications
1.keep steady power
2.safety and higher reliable
3.give out heat continuously
4.self-control the temperature
| R25 Value | 1-5000ohms |
| PTC Size | 24*15mm |
| Rated Voltage | 3.6-240V |
| Withstand Voltage | 400-900V |
| Surface Temp. | 50-300℃ |
| Operating Temp. | -25~125℃ |
Parameters of battery powered heating element :
| length | width | thickness | temperature | voltage | the length of the cable |
| 70mm | 13mm | 3.1mm | 275 Centidegree | 220V/110V | 150mm(length as per your request) |
| 70mm | 12mm | 3.1mm | 255 Centidegree | 220V/110V | 155mm(length as per your needed) |
| 64mm | 12mm | 2.9mm | 230 Centidegree | 220V/110V | 250MM(length as per your interested in) |
| 52mm | 12mm | 3.1mm | 180 Centidegree | 220V/110V | 150mm(length as per your request) |
| 35mm | 10mm | 2.8mm | 220 Centidegree | 220V/110V | 55mm( as per your interested in ) |
| 24mm | 8mm | 3.1mm | 160 Centidegree | 220V/110V | 120mm( length as per your needed) |
| 24mm | 6mm | 2.6mm | 150 Centidegree | 220V/110V | 125mm(length as per your request) |
Typical Applications:
1. Shoe-drying apparatus ,hair curling equipment
2. Physical treatment, massage apparatus,biology heating
3. Air-heating,wind-warming equipment ,cold and warm
air-conditioner
4. Mosquito-driving apparatus,boiled-water equipment,heating board
How to Order:
1. Application of the PTC heater : _______
2. Working environment of the PTC heater :______
3. The range of operating temperature:___℃to ____℃
*4. Dimension of the PTC heater: _______
*5. R(25) Value :_____
*6. Surface Temperature:_____
*7. Power:_____
* Fill “*” items necessarily
F&Q:
| Question | Answers |
| 1 | What is the MOQ? | 1000pcs. |
| 2 | What is the payment terms? | Negotiation. |
| 3 | Can you accept special requirement? | Yes, we can design for your special requirement. |
4
| Can you make the printing artworks(such as user
manual/packing/rating label) in our language |
Yes,we can.We do OEM work for long time |
| 5 | Can we order samples: | Yes ,you can . Free samples are available |
