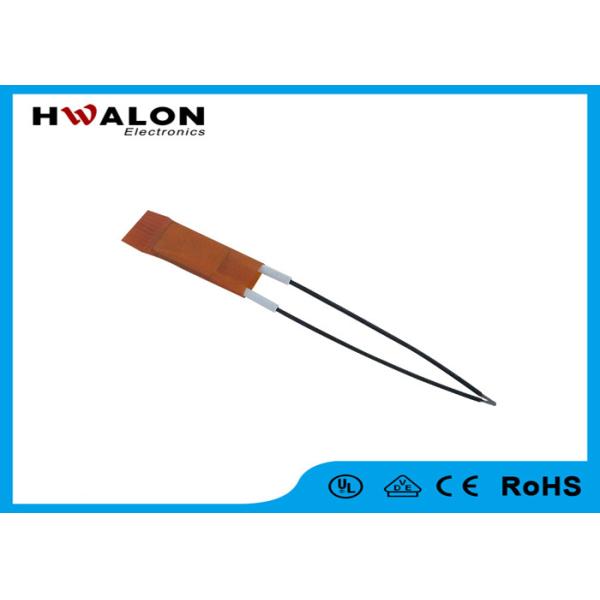

Low Voltage 200w Electric Ptc Heating Element 12v For Hair Dryer
Wax Warmer
PTC heating elements:
1. It can control the temperature by itself.
2. The lifetime is longer.
3. It could give out the heater continous.
4. saving energy
5. The power is stable.
Operating voltage | 12-240V AC/DC or customized |
Heating element | PTC resistor, temperature limiting |
Heater body | aluminium, anodised |
Mounting | screw fixing |
Fitting position | variable |
Operating temperature | -45 to +70 °C (-49 to +158 °F) |
Operating/Storage humidity | max. 90 % RH (non-condensing) |
Typical Applications:
1. Heater fan
2. Heating Plates
3. Drying Machines
4. Hair Dryer
5. Foot Warmer
6. Diesel Heater
7. Hot melt glue gun
Dimentions:
Parameters of battery powered heating element :
| Length | Width | Thickness | Surface temperature | Withstand Voltage | Rate |
| /mm | /mm | /mm | /°C | /V | voltage |
| 30 | 13 | 3.3 | 250 | 3750 | 100~240 |
| 48 | 10 | 3.2 | 255 | 3750 | 100~240 |
| 60 | 15 | 3.2 | 255 | 3750 | 100~240 |
| 60 | 13 | 3.2 | 260 | 3750 | 100~240 |
| 60 | 13 | 3.2 | 260 | 3750 | 100~120 |
| 24 | 15 | 3.2 | 260 | 3750 | 100~240 |
| 48 | 15 | 3.2 | 260 | 3750 | 100~240 |
Notice :
1. Working Voltage rang: 12-240V AC/DC or customized
2. Surface Temperature: 70°C~300°C , the temperature tolerance less
than ±5°C.
3. The lead wire, fiber glass sleeve, insulate film and shells can
customized according to per customers requirements.
Unlike traditional heating elements that use a resistance wire such
as Nichrome to generate heat,PTC heating elements are made as
ceramic stones, ase on barium titanate.
They have unique characteristics as semeconductors and their
ferro-electric propertise can be precisely determined during their
design.
How to Order:
1. Application of the PTC heater : _______
2. Working environment of the PTC heater :______
3. The range of operating temperature:___℃to ____℃
*4. Dimension of the PTC heater: _______
*5. R(25) Value :_____
*6. Surface Temperature:_____
*7. Power:_____
* Fill “*” items necessarily
